etracker users with an Enterprise license have the option of conveniently logging into their account via a SAML Single Sign-On (SAML SSO) and thus controlling access rights securely and centrally.

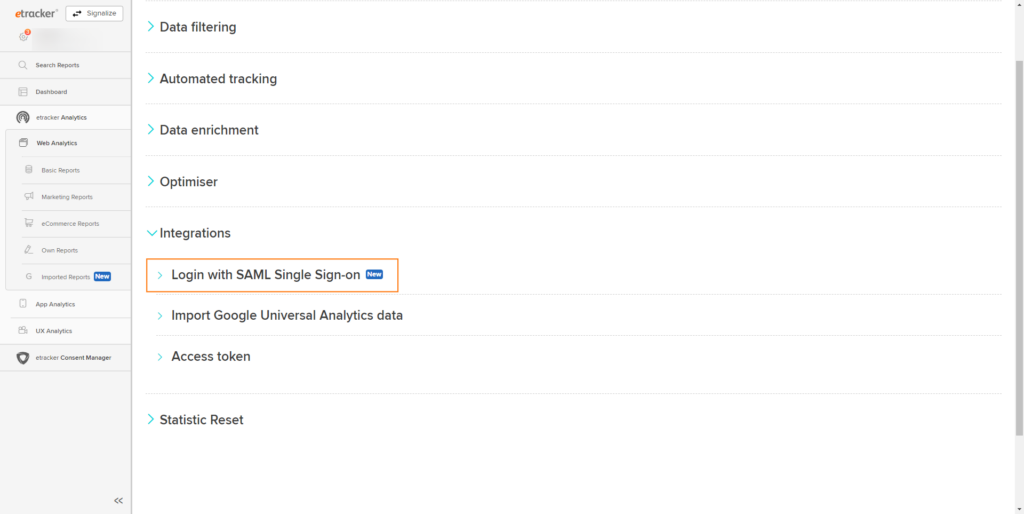

To do this, log into your etracker account and go to Settings → Integration → Account → Integrations → Login with SAML Single Sign-on:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_0-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_0-1024x514.png)
In the following, we will show you how to set up SAML SSO using Azure Ad as an example:
For the configuration, settings must be made in etracker and Azure Ad. Therefore, admin rights are a prerequisite in both tools.

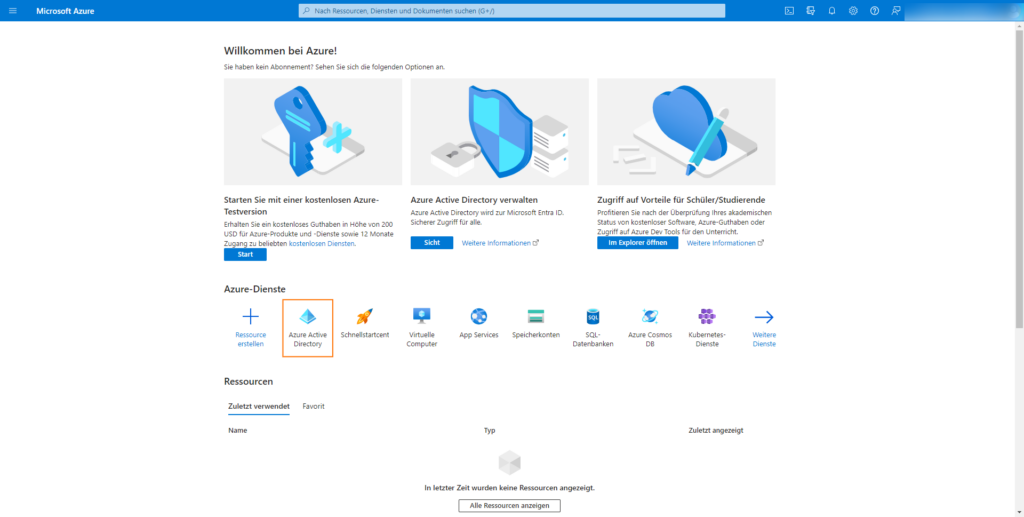

Log in to Azure Ad and click on the Azure Active Directory icon:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_1-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_1-1024x517.png)
Now click on Enterprise Applications in the menu
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_2-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_2-1024x517.png)
Create the application you need by clicking the New Application button.
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_3-1024x491.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_3-1024x491.png)
Enter an internal name for the app and leave the setting at Integrate any other applications not found in the catalog:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_4-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_4-1024x517.png)

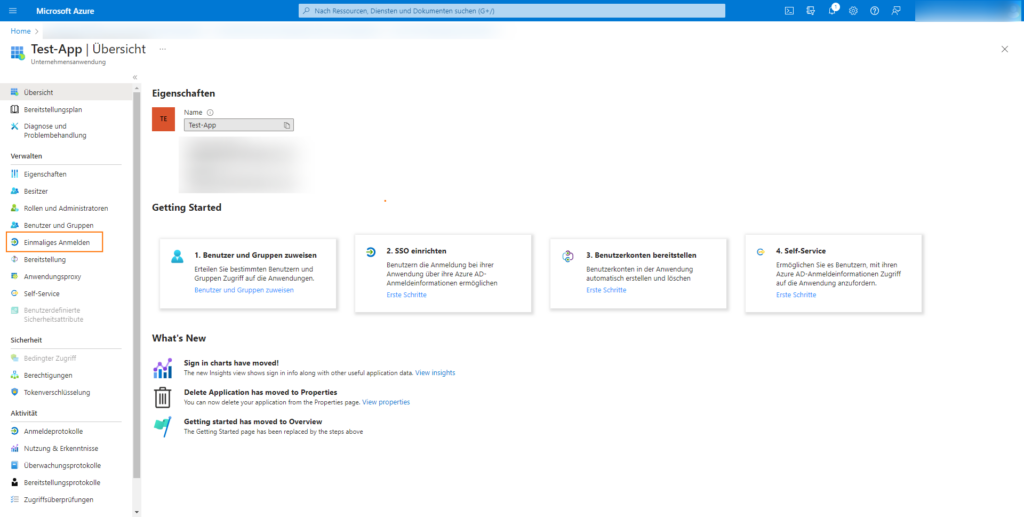

The application is now created and can be configured. To do this, click on Log in once:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_5-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_5-1024x517.png)

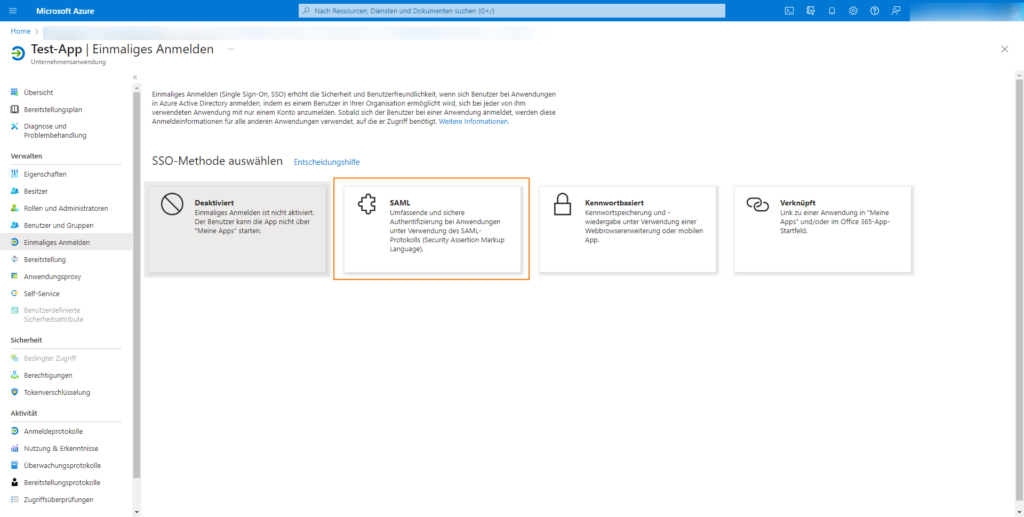

Next, select SAML here:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_6-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_6-1024x517.png)

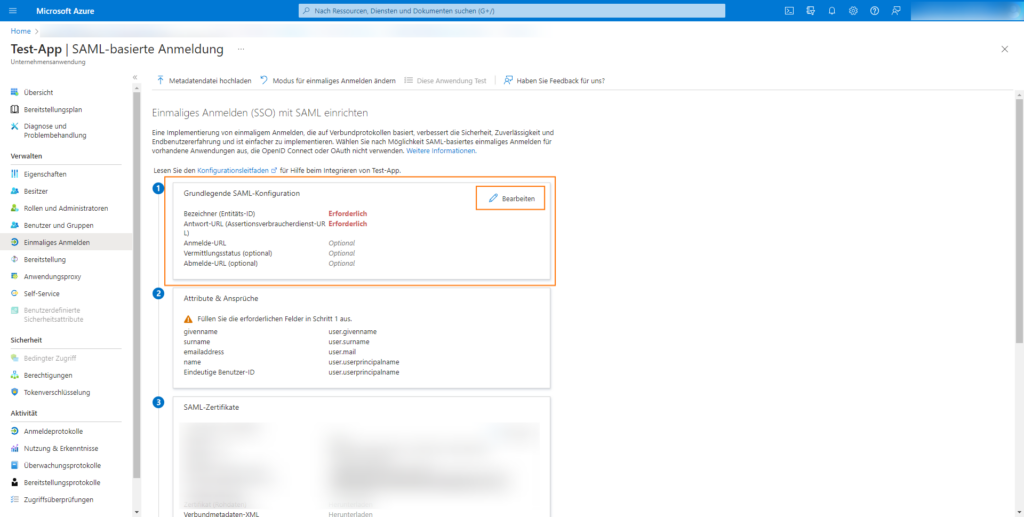

Click Edit in the 1st step to make the SAML configuration:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_7-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_7-1024x517.png)

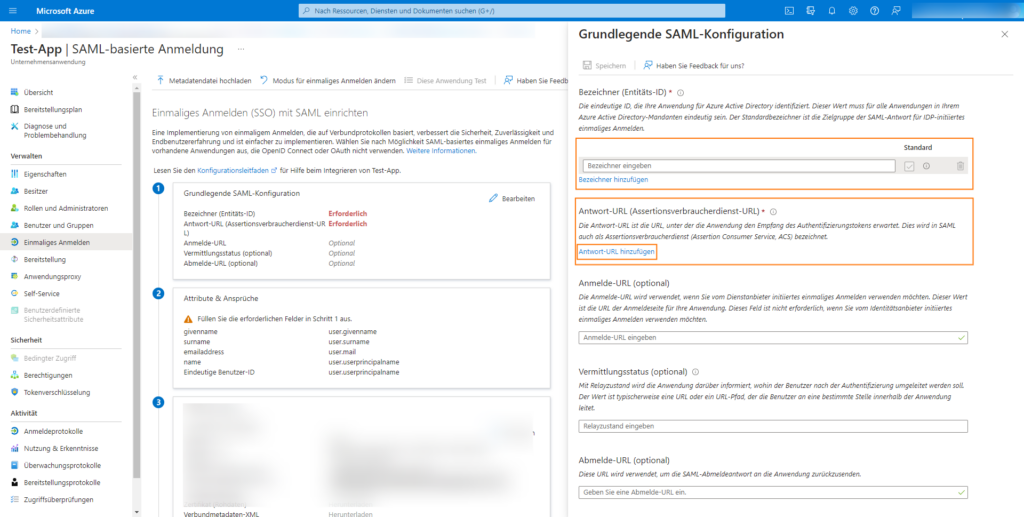

Add both an identifier via the Add identifier button and a response URL via the Add response URL button:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_8-1024x517.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_8-1024x517.png)

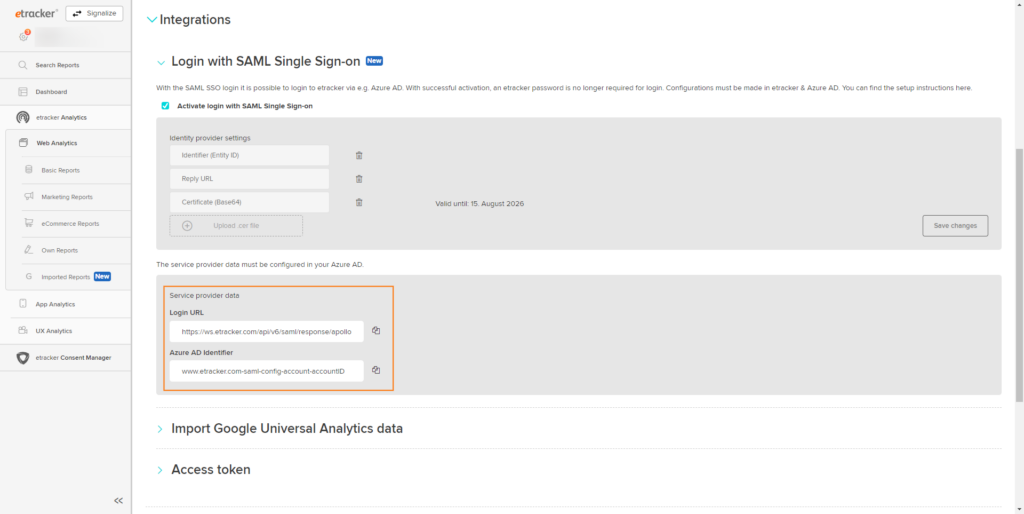

You can copy both from your etracker account:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_9-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_9-1024x514.png)

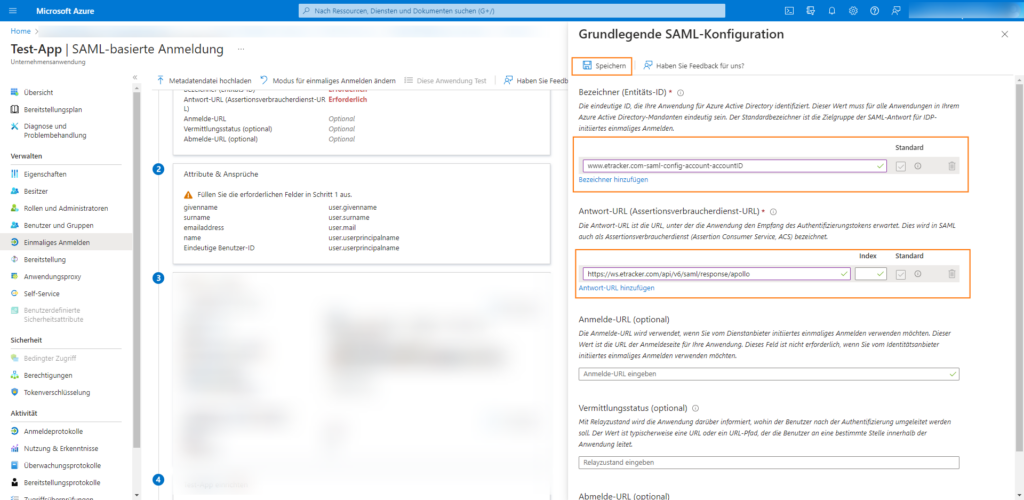

Save the entered data by clicking the Save button:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_10-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_10-1024x500.png)

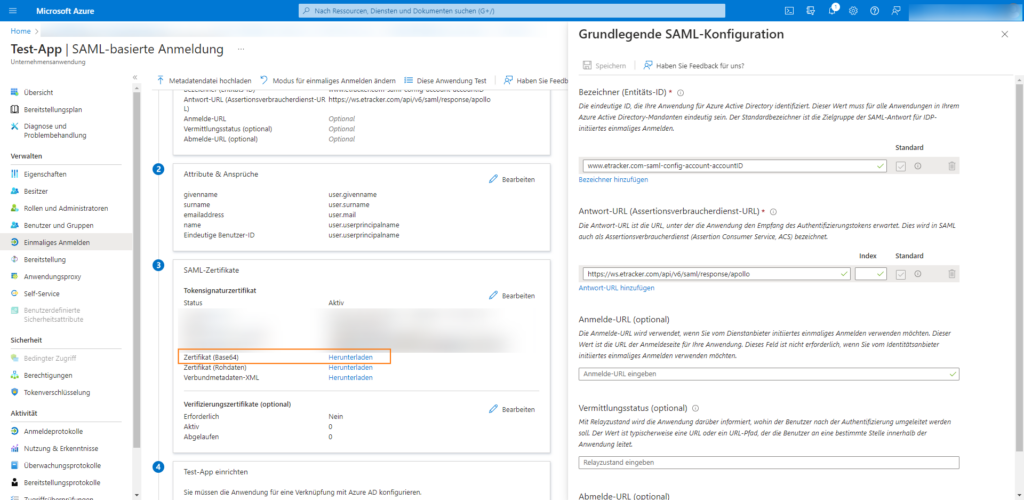

In the third step, download the certificate in Base64 format:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_11-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_11-1024x500.png)

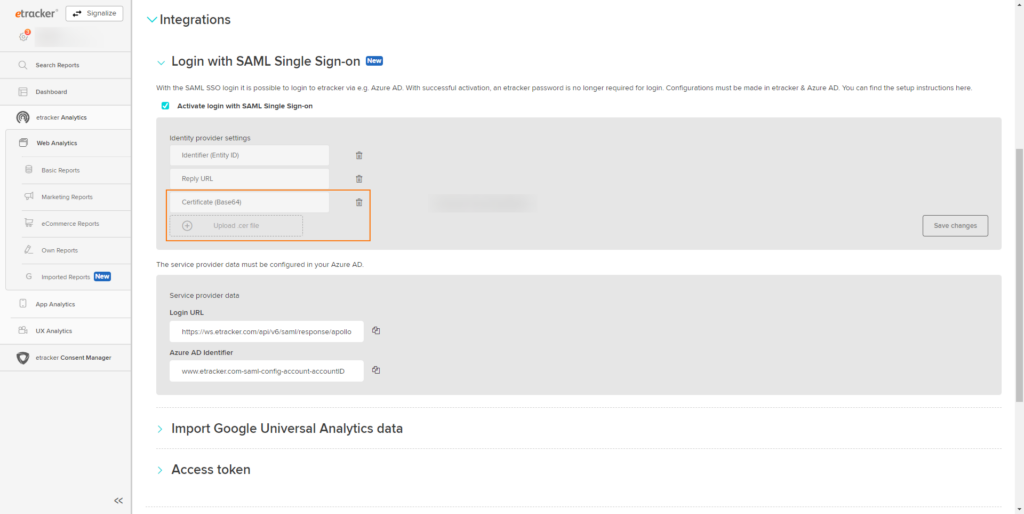

The downloaded certificate will be uploaded in etracker under Certificate (Base64):
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_12-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_12-1024x514.png)

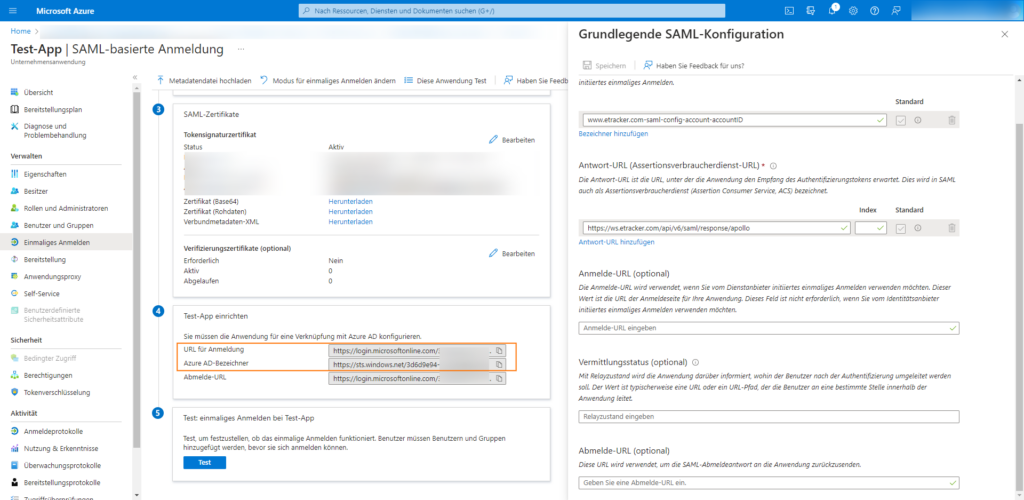

In addition, the data for the URL for login and Azure Ad identifier are copied from step 4 …
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_13-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_13-1024x500.png)

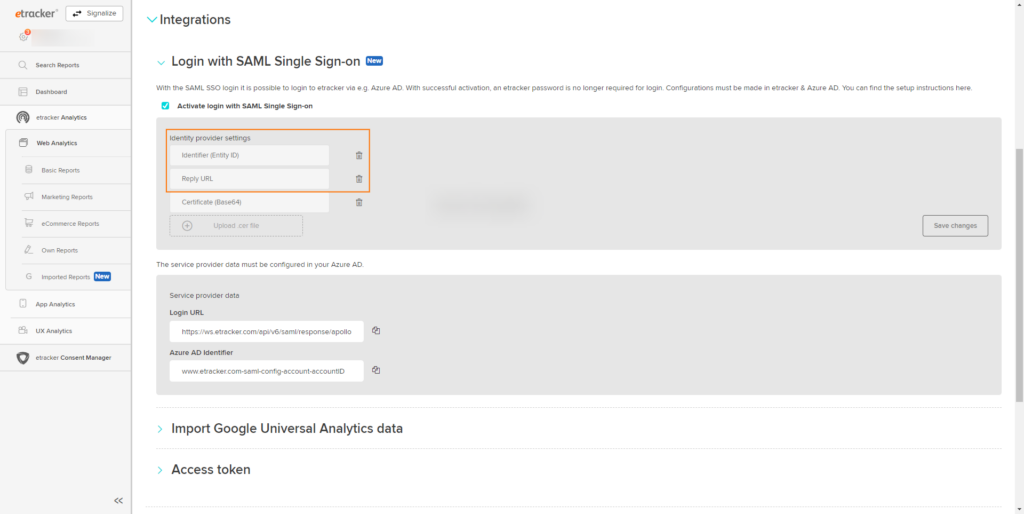

and pasted into etracker accordingly under Identifier ID and Response URL:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_14-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_14-1024x514.png)
This completes the configuration and a co-user who is allowed to log into the etracker account can be created.
To create a co-user, proceed as follows:

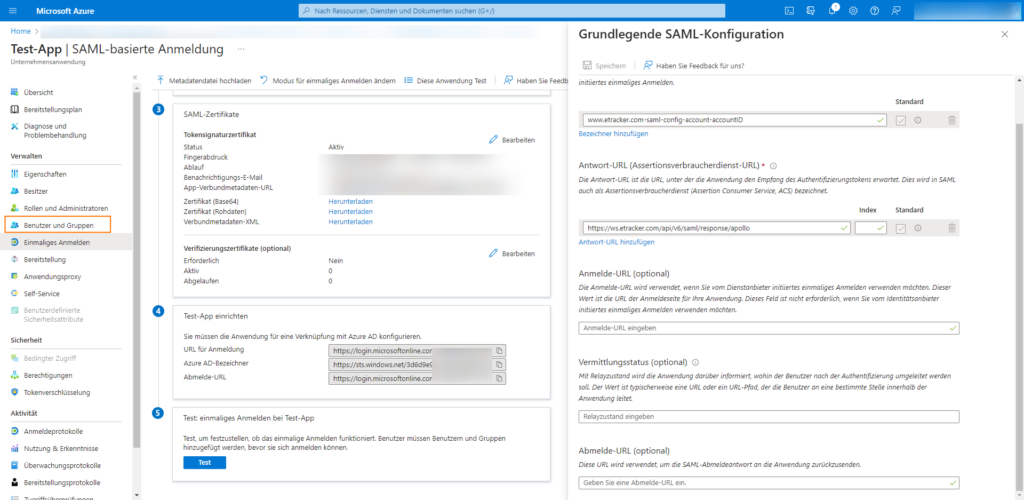

Select the menu item Users and Groups:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_15-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_15-1024x500.png)

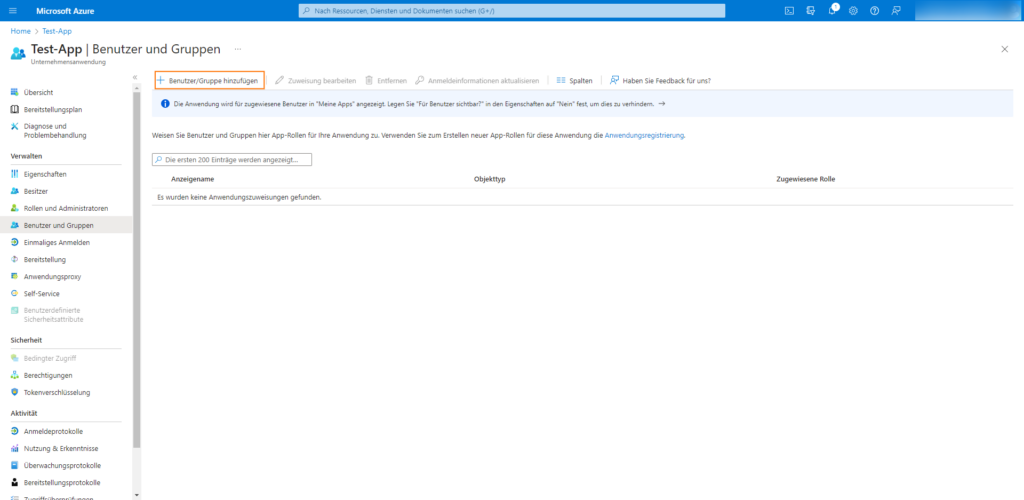

Add a new user by clicking the Add user/group button:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_16-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_16-1024x500.png)

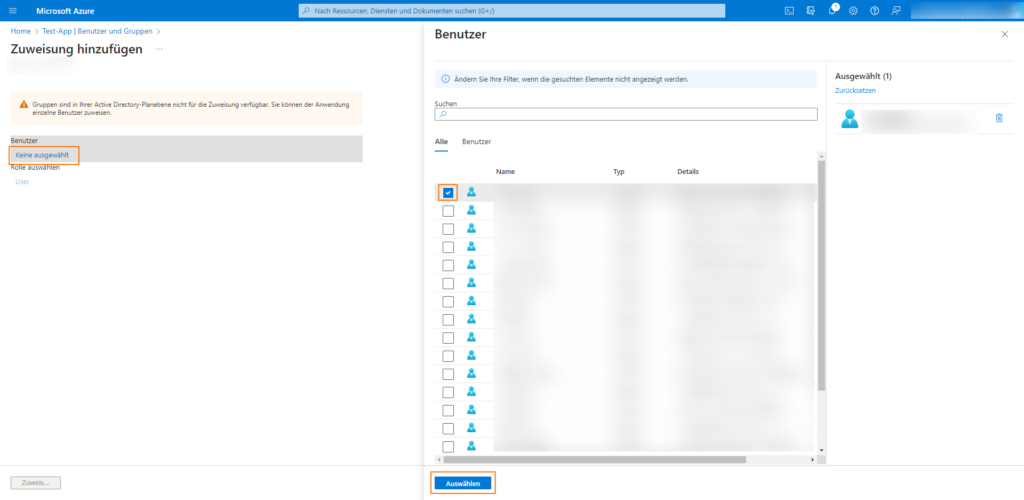

Open the list of users from the Azure Ad via the None selected button and select the desired user:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_17-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_17-1024x500.png)

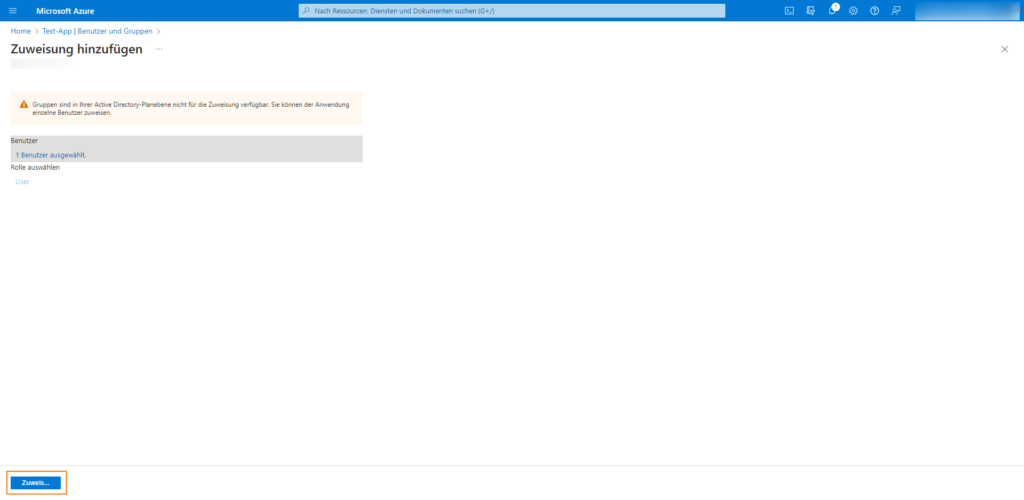

The selected user will be assigned to the created application in the next step:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_18-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_18-1024x500.png)
Now click on the created user and …
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_19-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_19-1024x500.png)

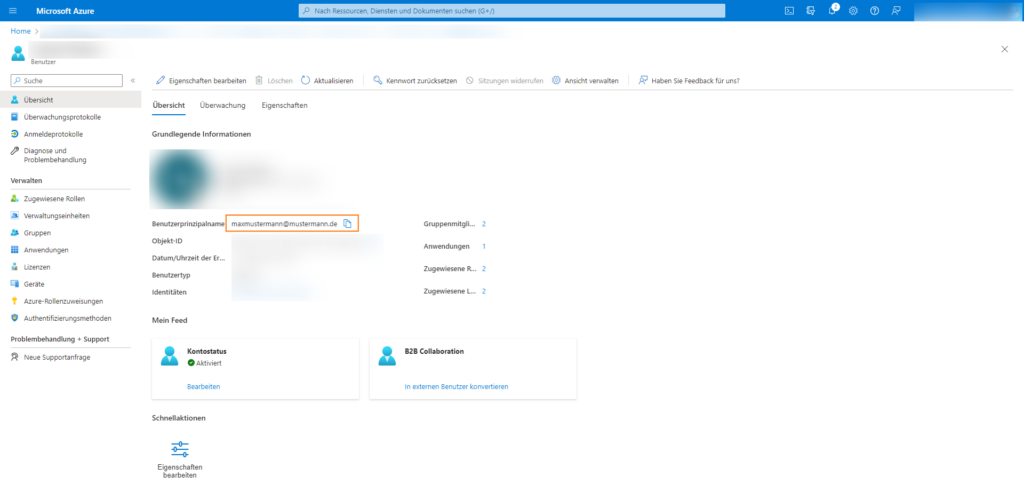

copy the stored e-mail address:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_20-1024x500.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_20-1024x500.png)

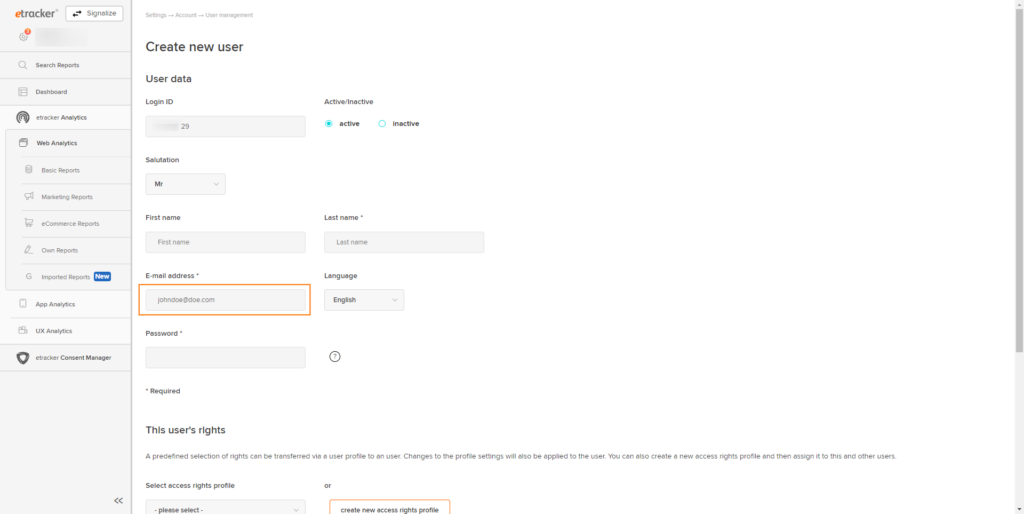

Create the user with this email address in etracker under Settings → Account → User management. The created user can now log in via SSO and no longer needs a password:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_21-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_21-1024x514.png)

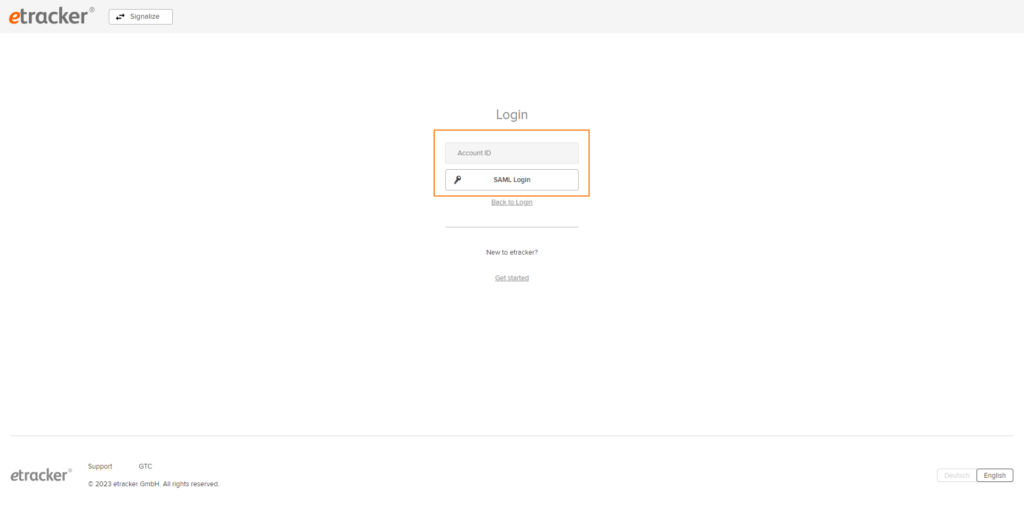

After creating a user, SAML Login can be selected in the etracker login screen, the account ID can be entered and the user can log in via Azure Ad:
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_22-1024x514.png)
![](https://www.etracker.com/wp-content/uploads/2023/08/SAML-EN_22-1024x514.png)
Done!
